Gigabyte
Matična ploča AM4 Gigabyte B550 Eagle HDMI/M.2 Wifi
Nije na stanju · pošaljite upit
16.990 RSD
1 / 3

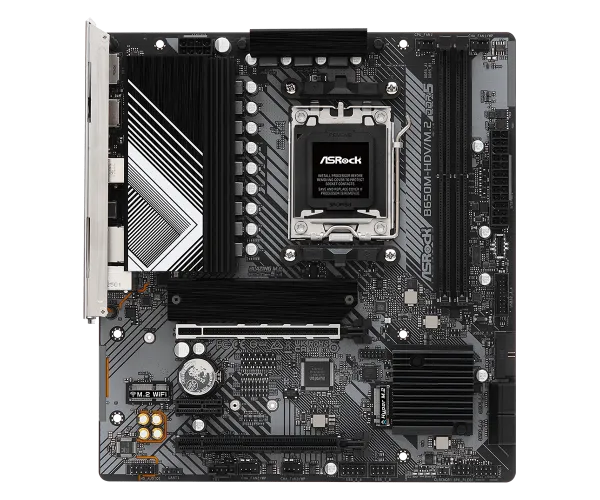

MB AM5 ASRock B650M-HDV/M.2 je proizvod iz kategorije Matične ploče.
-
CPU- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
-
Chipset- AMD B650
-
Memory- Dual Channel DDR5 Memory Technology
-
2 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)
-
Max. capacity of system memory64GB
-
BIOS- 256Mb AMI UEFI Legal BIOS with GUI support
Specifikacije
| CPU | - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
|---|---|
| Chipset | - AMD B650 |
| Memory | - Dual Channel DDR5 Memory Technology |
| 2 x DDR5 DIMM Slots | - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) |
| Max. capacity of system memory | 64GB |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) |
Audio
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|---|---|
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Stavka | - Dragon RTL8125BG |
| Stavka | - Supports Dragon 2.5G LAN Software |
| Stavka | - Smart Auto Adjust Bandwidth Control |
| Visual Network Usage Statistics | - Optimized Default Setting for Game, Browser, and Streaming Modes |
| CPU: | - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
| Stavka | - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* |
| Chipset: | - 1 x PCIe 4.0 x1 Slot (PCIE2)* |
| Stavka | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Supports AMD CrossFire™ | - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| CPU: | - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* |
| Chipset: | - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Stavka | - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Stavka | - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* |
| Stavka | *Requires additional M.2 NVMe expansion cards to support RAID 10 |
| USB | - 1 x USB 3.2 Gen2 Type-C (Front) |
| Stavka | - 1 x USB 3.2 Gen1 Type-C (Rear) |
| Stavka | - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) |
| Stavka | - 8 x USB 2.0 (4 Rear, 4 Front) |
| Stavka | *All USB ports support ESD Protection |
| 1 x CPU Fan Connector (4-pin)* | - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** |
| Stavka | - 1 x 24 pin ATX Power Connector |
| Stavka | - 1 x 8 pin 12V Power Connector |
| 1 x Front Panel Audio Connector | - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) |
| Stavka | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Stavka | - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
| Stavka | - 1 x Front Panel Type C USB 3.2 Gen2 Header |
| Stavka | *CPU_FAN1 supports the fan power up to 1A (12W). |
| Stavka | **CHA_FAN1~3/WP support the fan power up to 2A (24W). |
| Stavka | CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |

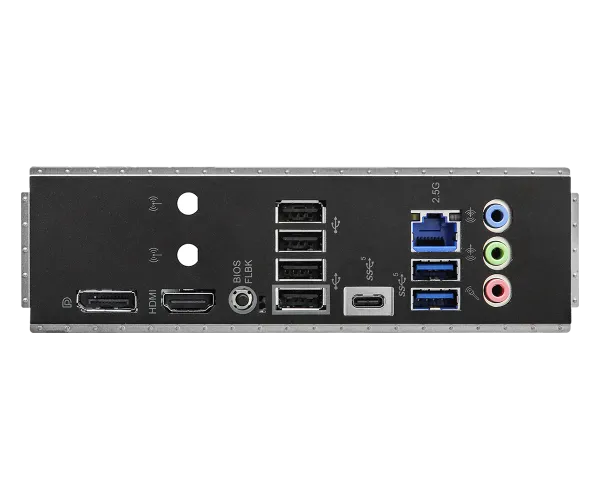

| 1 x HDMI Port | - 1 x DisplayPort 1.4 |
| Stavka | - 1 x USB 3.2 Gen1 Type-C Port |
| Stavka | - 2 x USB 3.2 Gen1 Type-A Ports |
| Stavka | - 4 x USB 2.0 Ports |
| Stavka | - 1 x RJ-45 LAN Port |
| 1 x BIOS Flashback Button | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software | - ASRock Motherboard Utility (A-Tuning) |
| Stavka | - ASRock Dragon 2.5G LAN Software* |
| ASRock Instant Flash | *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| 2 x SATA Data Cables | - 2 x Screws for M.2 Sockets |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm |
| Naziv i vrsta robe | Matične ploče |
|---|---|
| Model | Podatak nije dostavljen |
| Proizvođač | ASRock |
| Uvoznik | Podatak nije dostavljen |
| Zemlja porekla | Podatak nije dostavljen |
| Prava potrošača | Prava potrošača ostvaruju se u skladu sa važećim propisima Republike Srbije. |
